Active Model

E3 Studio Capsule

Capsule Pod Series

A compact studio capsule with a private bath and wide front glazing.

Area
193 sq ft / 17.9 m²
Dimensions
18.4 × 10.5 ft
Bedrooms
Studio
Bath
1

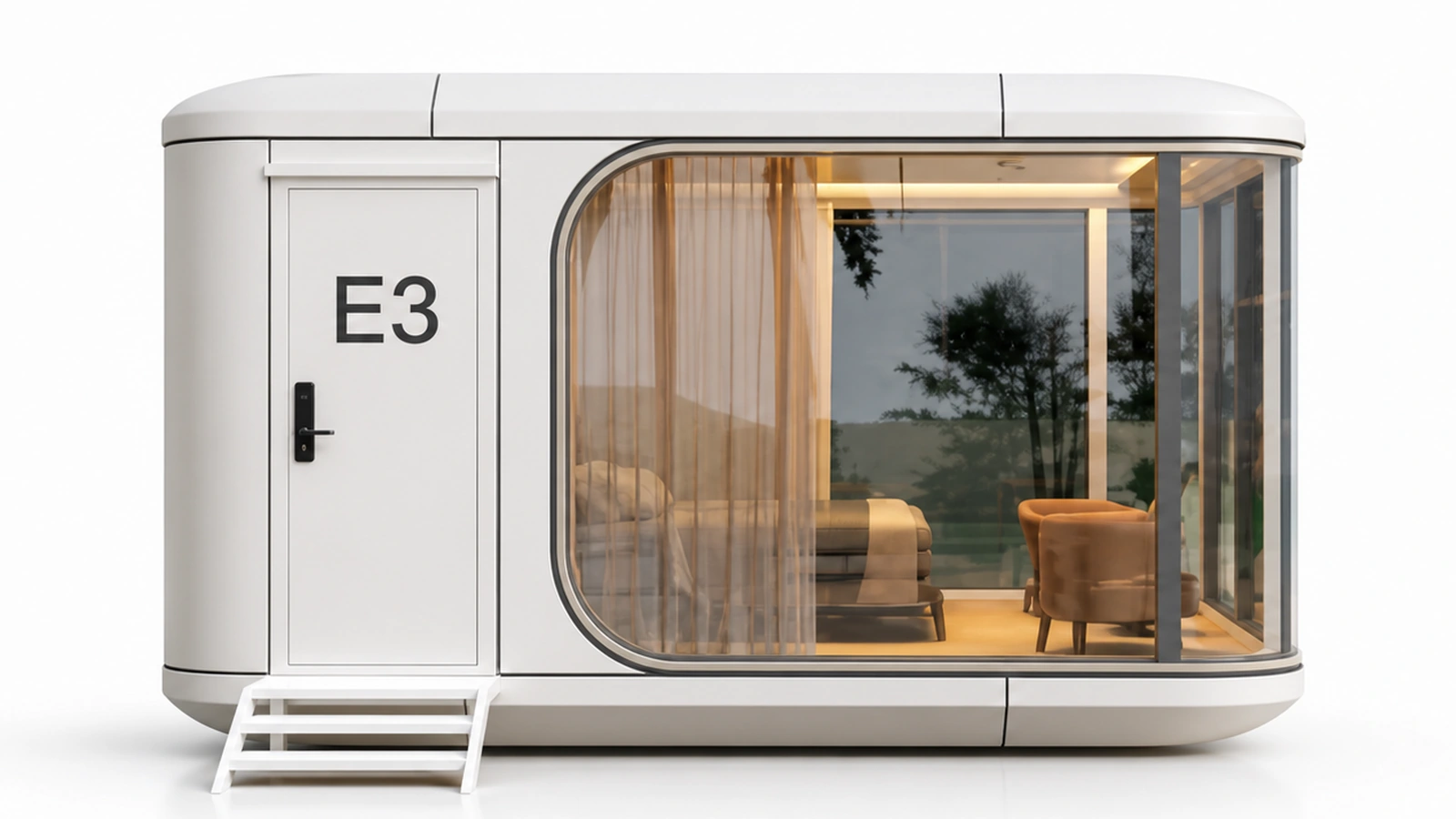

E3 Studio Capsule exterior
Verified Floorplan

Review the layout

Room positions, doors, glazing, decks, and fixtures follow the model sheet.

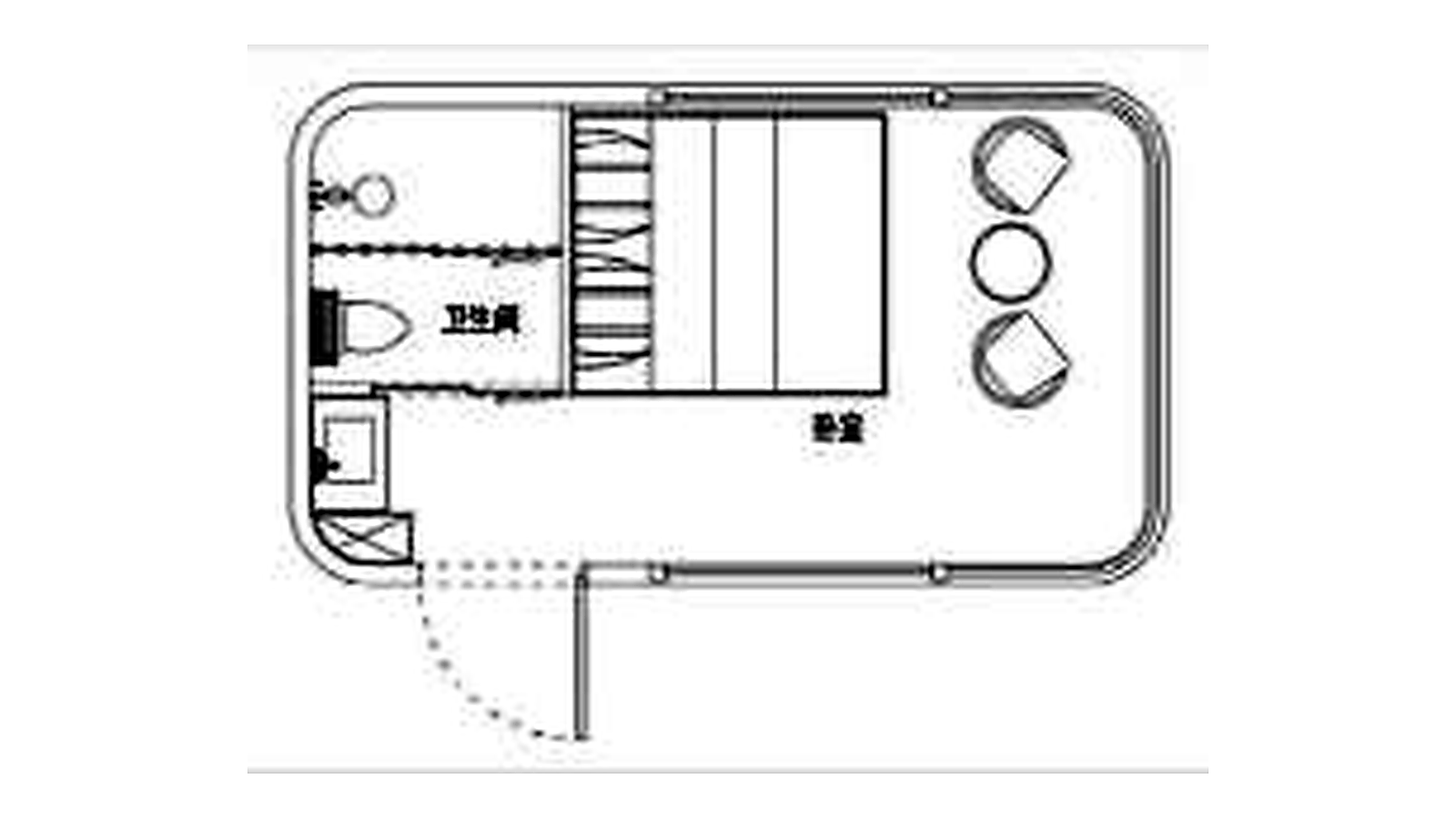

Verified E3 Studio Capsule floorplan
Studio plan with a private bath and curved lounge end.
Purchase Scope

What is included - and what is separate

The final written quote controls the exact scope for the selected model and configuration.

Included in the quoted structure

  • The selected modular structure and structural frame
  • Standard factory finishes identified in the final quote
  • Model-specific windows and exterior doors
  • Electrical and plumbing preparation where specified
  • Available drawings, specifications, and technical documentation

Not included unless specifically quoted

  • Foundation, anchoring design, and site preparation
  • Utility connections and local contractor work
  • Permits, fees, site-specific engineering, and surveys
  • Crane, unloading, delivery-site access work, and installation
  • Governmental approval or approval for residential occupancy
Core Materials

A practical modular building system

The selected model is built around a structural frame, insulated envelope, protected floor assembly, and model-specific glazed openings.

Steel frame Galvanized structural frame system
Insulated shell Layered exterior and insulation system
Low-E glazing Double-pane tempered glass system
Layered floor Fiber-cement, OSB, and moisture-control layers
